How To Create and Update a CSV Adapter
Written By Ed Kinne
Last updated 11 months ago
This article will review the basics of creating a CSV Data Adapter
This article reviews a specific data adapter. For more general information see
CSV Data Adapters use a CSV File stored in your Korbyt Media Manager to create a data table that can then be used to display or control information in Korbyt. The information is then updated by importing an updated CSV File into Korbyt in a way that overwrites the old file
Step 1 - Import the CSV Data File into Korbyt
On your computer, create the CSV data file using your application of choice
Be sure to save the file in CSV format
Import the CSV File to your Korbyt Media Manager
This can be done manually
For help reviewing Manual import steps see – Using The Media Manager
It can also be imported through a Courier
For help with couriers see – Couriers for Automatic Content Import
Step 2 - Creating the CSV Data Adapter
Once the CSV file is in the Korbyt media library, you can create the adapter.
If not already in the Integration section, open the Mega Menu, then in the Advanced section click Data Integration
In the Upper right click Create Adapter

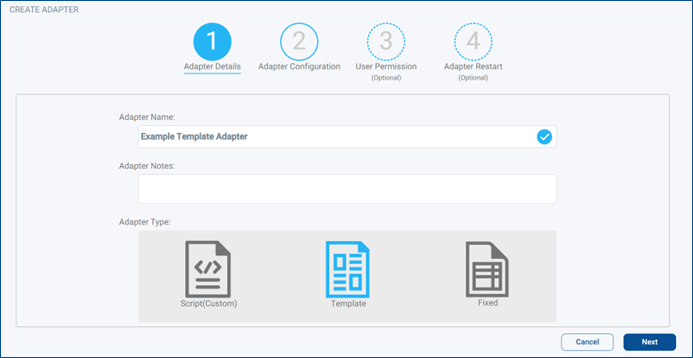

You will be required to name your Adapter (description is optional, but can be helpful to other users if the name is not clear)
And click the Template icon in the middle, and click Next

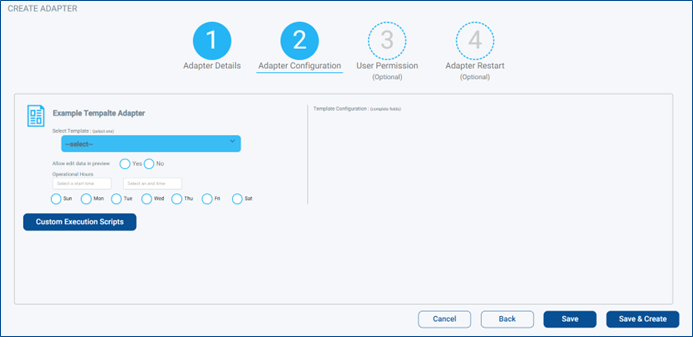

On the next Screen, Adapter Configuration, you will have a Left and Right Side

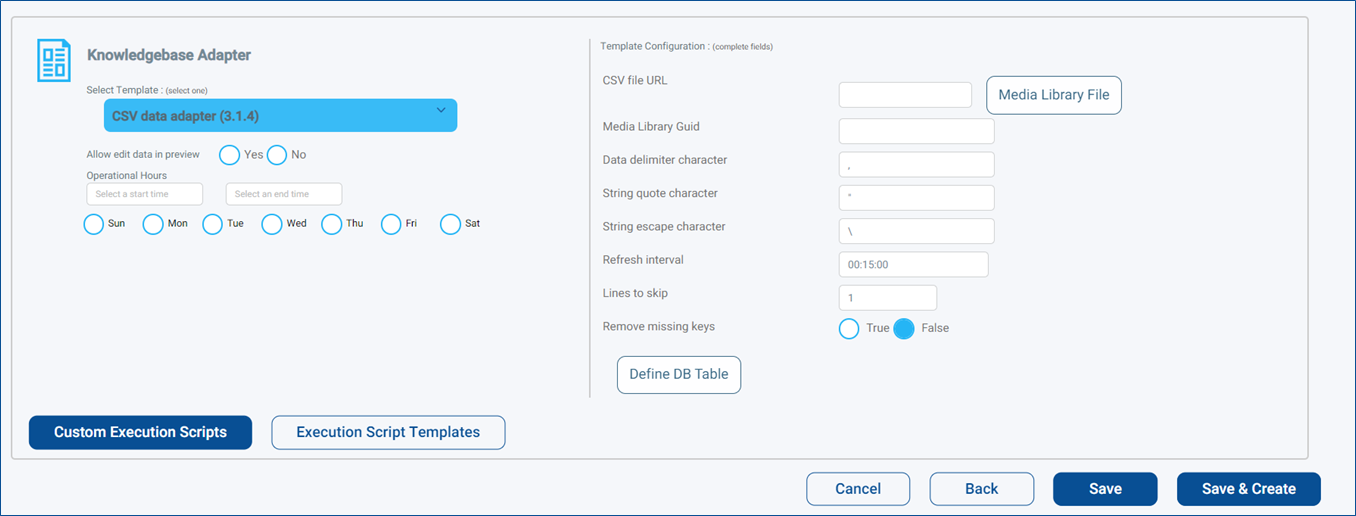

On the Left Side, use the Drop-Down to select CSV Adapter, and the view will change
On the left, you can configure several options
Allow edit data in preview (yes/no)
Yes, will allow for manual adjustment of the final data table inside of Korbyt
If the adapter continues to run, these edits will be overwritten when the adapter updates
Operational Hours
The days and times the adapter will run to gather new data from the source
Customer Execution Scripts
Adding any required, Pre-Execution Script, Pre-Insert/Update Script, Pre-Delete Script, Post-Execution Script
On the Right, you will configure the details of the adapter itself

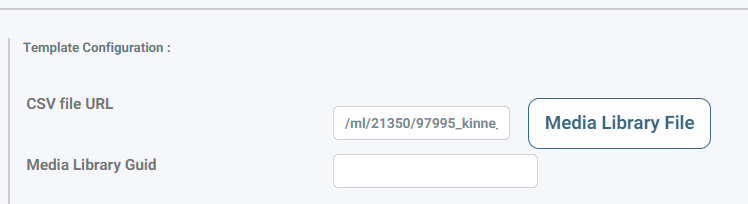

Use the Media Library File to select the CSV file that has been uploaded to the Media Manager
Set the Data delimiter character, String quote character, and String escape character for your data table
If you do not use customer values, leave them at their defaults
Refresh interval sets how often the adapter reviews the CSV file for new information
You will now need to define the Data Base Table Columns, and the type of information each column will hold

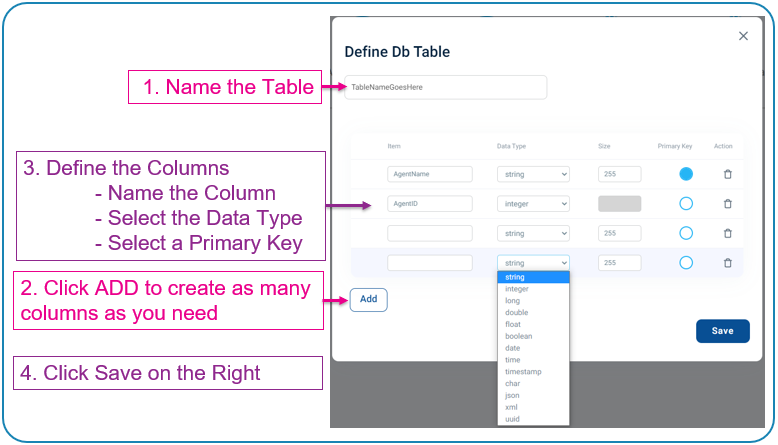

Click Defining the DB Table to create the structure for your database
When you click save, you will see that the Define DB Table has gone green

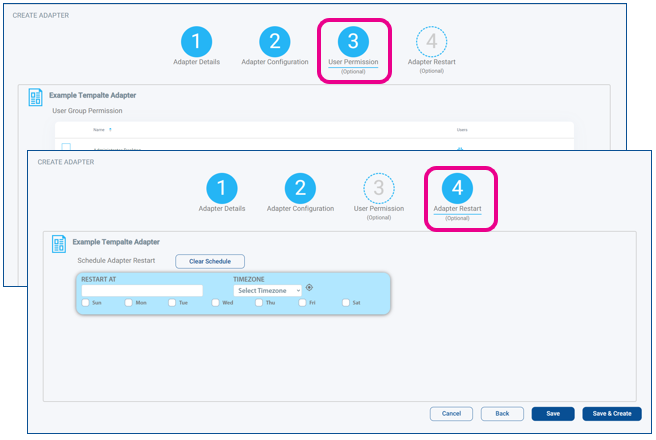

Optional Steps include Configuring User Permissions and Adapter Restart by clicking those steps at the top
Once configured click Save & Create, you will see a dialog box that will tell you the progress of starting up the Adapter
You now have a Data Adapter that periodically scans the CSV File for information and puts that information into a data table
Viewing the Data Table

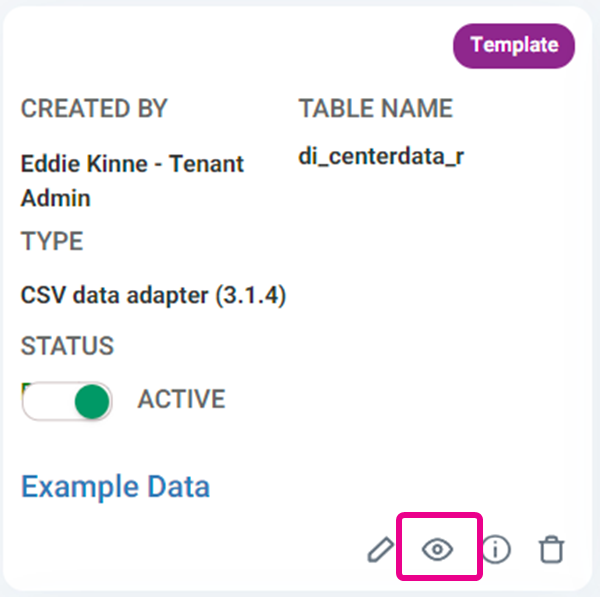

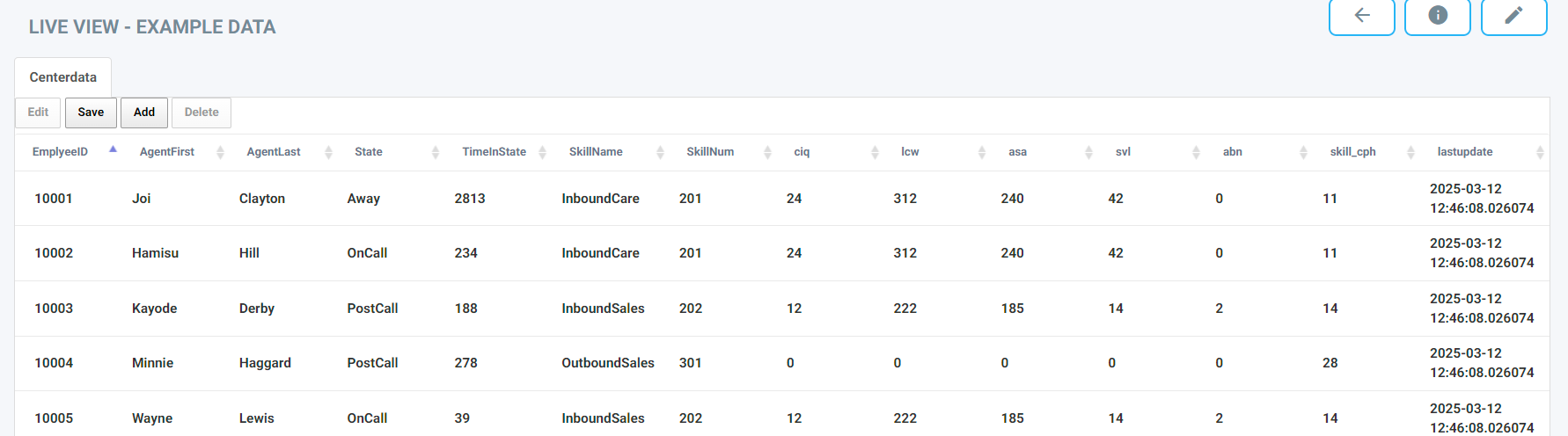

With the Adapter created and running, you can view the data table by clicking on the eyeball Icon
Updating and Changing The Data
Uploading a New File
Uploading a New CSV File will update the information in the adapter when it runs
Remember you set an interval for the data adapter to update, so the new information will not appear in the table until the adapter interval runs
If the new CSV File is not uploaded correctly, it will not replace the old file, and data will not update
To Upload a New CSV File
Update the CSV File on your Computer
Keep the Same File Name as the original that was uploaded
In Korbyt Media Manager, locate the folder that holds the Original CSV File

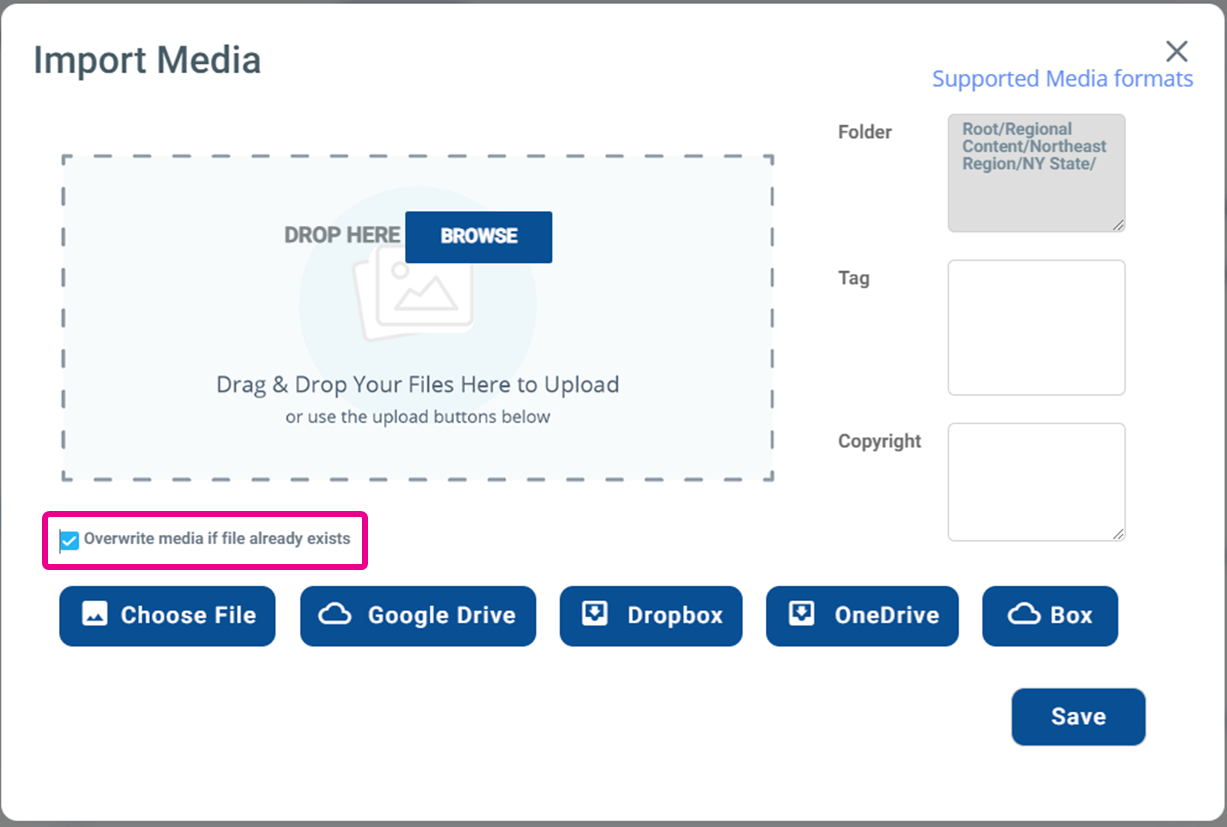

Click Import Media
BEFORE SELECTING THE FILE FROM YOUR COMPUTER - Click the Overwrite File if it Already Exists check box
Now select the new file by browsing or dragging and dropping
Click Save
You will see that you still have only 1 CSV file with data in the Media Manager
If you wish to force the adapter to run now and update the information you can navigate to the CSV Adapter and deactivate , then reactivate it.
Changing the Adapter to Examine a New File
If the original CSV File is deleted from the Media Manager, or you simply wish to link the adapter to a new file you can edit the adapter to look at the new file.
To Change the CSV File that Adapter Uses
Locate the CSV Adapter
Click the Green Active Toggle to Deactivate it
Click the Pencil Icon to Edit the Adapter
Click Next on the Adapter name Screen
In Adapter Configuration, click Media Library File
Select the new file from the media manager
If this was the only change, Click Save & Create

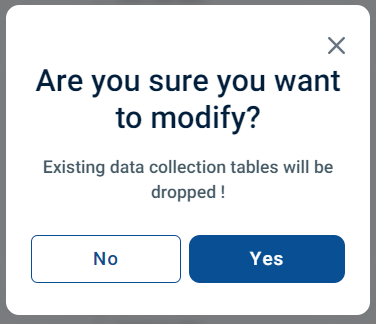

A warning will tell you that existing data will be removed from the table
Click Yes, the data will be refilled when you
Click - Activate - for the adapter to restart it
You can now click the Eyeball Icon to view the new data table
Adding Additional Columns of Information to the Adapter and CSV File
Adding Additional Columns to the data table will require you to edit the CSV Data Adapter, specifically the DB Table configuration, to add the new column.
To Change the CSV File that Adapter Uses
Locate the CSV Adapter
Click the Green Active Toggle to Deactivate it
Click the Pencil Icon to Edit the Adapter
Click Next on the Adapter name Screen
In Adapter Configuration, click Define DB Table
If this was the only change, Click Save & Create
A warning will tell you that existing data will be removed from the table
Click Yes, the data will be refilled when you
Click - Activate - for the adapter to restart it
You can now click the Eyeball Icon to view the new data table
CSV File Best CSV Files Structure
The CSV File expects Comma Separated values and you should not use other delimitation marker
As a best practice there should be a unique value for each entry (row) to be able to use as the primary key value
This could be an employee ID or email, a Queue ID value, or an incremented number so each row is unique in some way the system can see
